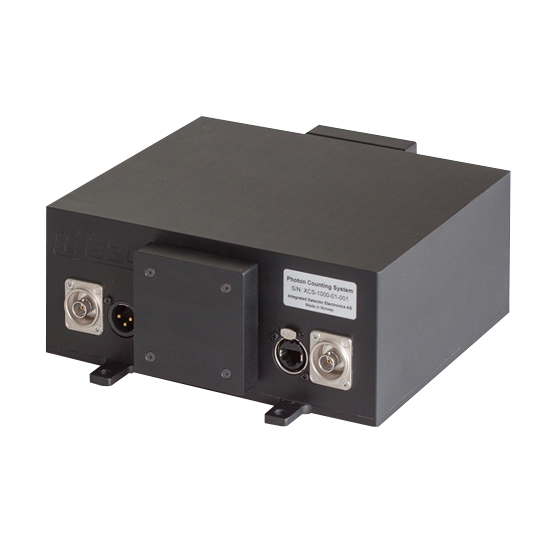

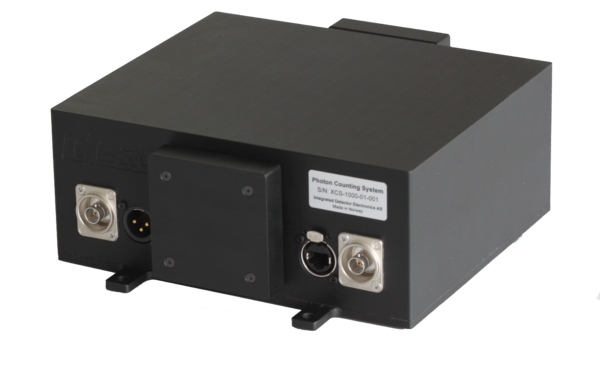

The IDE-XCS-1000 series is a family of energy-resolved photon counting systems for x-ray and gamma photons. The detector system is delivered with an array of pixelated mono-crystal CZT sensors, arranged in a line pattern. The detector readout electronics is based on IDEAS proprietary frontend IC technology.
Three versions are available in the series, with 1, 3 and 6 energy threshold levels respectively. The multiple energy levels are counted in parallel.
Multiple detectors can be connected together in a larger synchronized counting system. Each detector unit includes input and output interfaces for synchronization.
The counting data is available over a standard Ethernet interface, using a custom TCP/UDP based readout and control protocol. The detector system is delivered with the “IDEAS Testbench Software” testing software and a detailed user manual, including an interface description for the packet protocol. On request a C API and/or LabVIEW API can also be delivered together with the detector system.
제품 설명
The IDE-XCS-1000 series is a family of energy-resolved photon counting systems for x-ray and gamma photons. The detector system is delivered with an array of pixelated mono-crystal CZT sensors, arranged in a line pattern. The detector readout electronics is based on IDEAS proprietary frontend IC technology.
Three versions are available in the series, with 1, 3 and 6 energy threshold levels respectively. The multiple energy levels are counted in parallel.
Multiple detectors can be connected together in a larger synchronized counting system. Each detector unit includes input and output interfaces for synchronization.
The counting data is available over a standard Ethernet interface, using a custom TCP/UDP based readout and control protocol. The detector system is delivered with the “IDEAS Testbench Software” testing software and a detailed user manual, including an interface description for the packet protocol. On request a C API and/or LabVIEW API can also be delivered together with the detector system.
Ordering Information
| Product ID | Energy Bins | Pixel Pitch | Pixels per Segment | Pixel Layout per Segment |
| IDE-XCS-1108 | 1 | 1.6 mm | 896 | 112 x 8 |
| IDE-XCS-1308 | 3 | |||
| IDE-XCS-1604 | 6 | 448 | 112 x 4 | |
| IDE-XCS-1118 | 1 | 800 μm | 896 | 224 x 4 |
| IDE-XCS-1318 | 3 | |||
| IDE-XCS-1614 | 6 | 448 | 224 x 2 | |
| IDE-XCS-1124 | 1 | 400 μm | 448 | 448 x 1 |
| IDE-XCS-1624 | 6 |
Product Features
| Detectors | CZT or CdTe |
| Applications | NDT, Process Flow Tomography, Sorting, Security |
| Number of pixels | Up to 896 or 1024 (896x1, 448x1, 224x4 or 112x8) |
| Scalable | Yes, up to several meters |
| Spectral Channels | 6, 3 or 1 |
| Input charge range | Up to 130 keV (customizable, higher energies possible) |
| Pixel pitch | 200μm, 400μm, 800μm or 1.6 mm |
| Event Rates | Up to 2*10^6 events/s/mm |
| Energy resolution | < 6.5 % FWHM at 122 keV (detectors only) |
| Data interface | Ethernet |
| Power consumption | 12 W |
| Dimensions | 187 mm x 220 mm x 90 mm |
| Weight | <2kg |
| Data interface | Ethernet |
| Dimensions | 187 mm x 220 mm x 90 mm |
| Number of pixels | Up to 896 or 1024 (896x1, 448x1, 224x4 or 112x8) |
