설명
Give your tester intensity

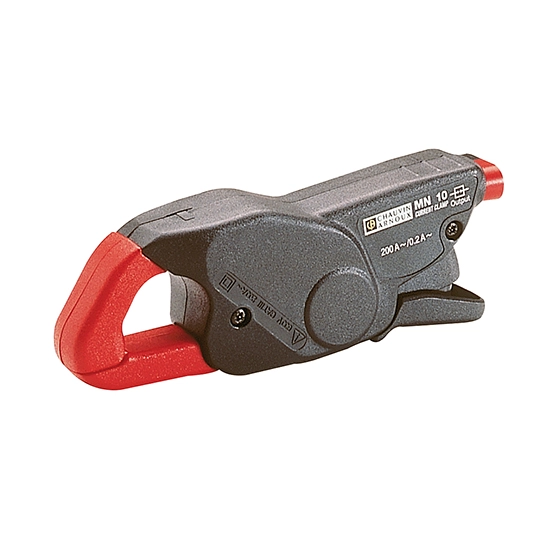

The MN series of miniclamps (11 standard models) are designed to measure AC current from 10mA to 600A peak AC, with a wide bandwidth.
· IEC 1010.2.032-600V-Category III, for industrial environments
· non-slip guard, cable anti-pinch system
· clamping up to a diameter of 20mm
· utilisation with all multimeters, oscilloscopes, recorders…
There are various models of miniclamps to satisfy every requirement:
· single or dual calibre
· AC current (mA AC) or AC voltage (mV AC) or DC voltage (mV DC) output
· connection by safety sockets or hard-wired with banana plugs and also a model for oscilloscopes MN60 (clamp with BNC connector)
| MODEL | input | output | connection | ratio | bandwidth | accuracy |
| MN08 | 0.5-240A | 0.2A AC | jack | 1000/1 | 40HZ-10KHZ | 1% |
| MN09 | 0.5-240A | 0.2A AC | lead | 1000/1 | 40HZ-10KHZ | 1% |
| MN10 | 0.5-240A | 0.2A AC | jack | 1000/1 | 40HZ-10KHZ | 2% |
| MN11 | 0.5-240A | 0.2A AC | lead | 1000/1 | 40HZ-10KHZ | 2% |
| MN12 | 0.5-240A | 2V AC | jack | 1A/10mV | 40HZ-10KHZ | 1% |
| MN13 | 0.5-240A | 2V AC | lead | 1A/10mV | 40HZ-10KHZ | 1% |
| MN14 | 0.5-240A | 0.2V AC | jack | 1A/1mV | 40HZ-10KHZ | 1% |
| MN15 | 0.5-240A | 0.2V AC | lead | 1A/1mV | 40HZ-10KHZ | 1% |
| MN21 | 0.1-240A | 0.2A AC | lead | 1000/1 | 40HZ-10KHZ | 2% |
| MN23 | 0.1-240A | 0.2V AC | lead | 1A/10mV | 40HZ-10KHZ | 1.5% |
| MN38 | 0.1-24A | 2VAC | jack | 1A/100mV | 40HZ-10KHZ | 1% |
| 0.5-240A | 2VAC | jack | 1A/10mV | 40HZ-10KHZ | 1% | |
| MN39 | 0.1-24A | 2VAC | lead | 1A/100mV | 40HZ-10KHZ | 1% |
| 0.5-240A | 2VAC | lead | 1A/10mV | 40HZ-10KHZ | 1% | |
| MN60 | 0.1-60Apeak | 2VAC | BNC | 1A/100mV | 40HZ-40KHZ | 2% |
| 0.5-600Apeak | 2VAC | BNC | 1A/10mV | 40HZ-40KHZ | 1.5% | |
| MN71 | 10mA-12A | 1V AC | lead | 1A/100mV | 40HZ-10KHZ | 1% |
| MN73 | 10mA-2,4A | 2VAC | lead | 1mA/1mV | 40HZ-10KHZ | 1% |
| 100mA-240A | 2VAC | lead | 1A/10mV | 40HZ-10KHZ | 2% | |
| MN88 | 0.5-240A | 20V DC | JACK | 1A/100mV | 40HZ-10KHZ | 2% |
| MN89 | 0.5-240A | 20V DC | lead | 1A/100mV | 40HZ-10KHZ | 2% |
Download Spec Sheet
For more information, please download the Spec Sheet which includes full technical specifications.
