Name: IM7580 Series
Availability: InStock

알림

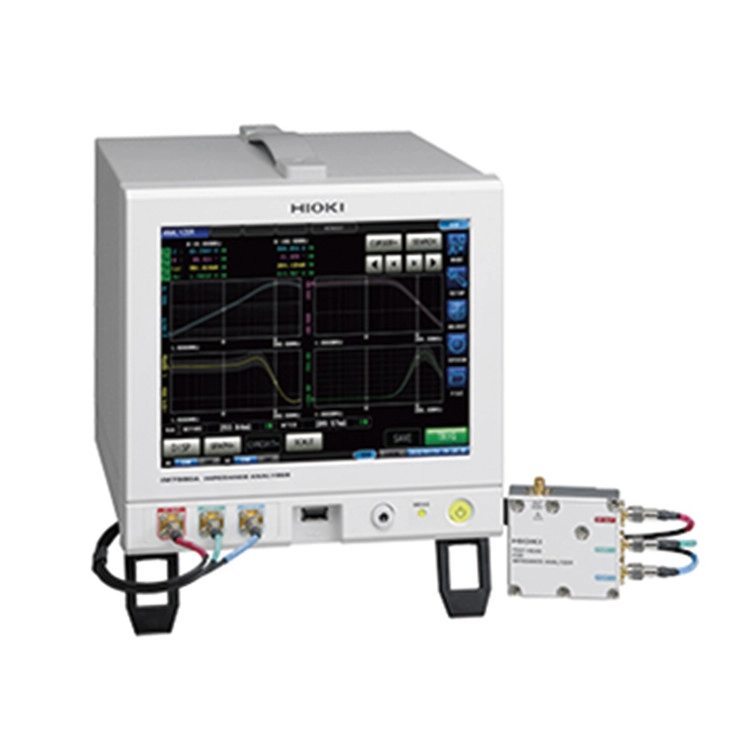

IM7580 Series

가격문의(상세정보 참조)

상세정보 접기

상세정보 접기

상품이 없습니다.

EX Series

가격문의

가격문의

PT Series

가격문의

가격문의

2,750,000원

2,750,000원

가격문의

가격문의

Frequency Range	IM7580A	1 MHz to 300 MHz
	IM7581	100 kHz to 300 MHz
	IM7583	1 MHz to 600 MHz
	IM7585	1 MHz to 1.3 GHz
Frequency Resolution	IM7580A	1.0000 MHz to 9.9999 MHz …… 100 Hz steps
		10.000 MHz to 99.999 MHz …… 1 kHz steps
		100.00 MHz to 300.00 MHz …… 10 kHz steps
	IM7581	100.00 kHz to 999.99 kHz ……… 10 Hz steps
		(1.0000 MHz to 300.00 MHz same as IM7580A)
	IM7583 / IM7585	100 kHz steps
signal level	IM7580A / IM7581	Power : -40.0 dBm to +7.0 dBm
		Voltage : 4 mV to 1001 mV rms
		Current : 0.09 mA to 20.02 mA rms
	IM7583 / IM7585	Power : -40.0 dBm to +1.0 dBm
		Voltage : 4 mV to 502 mV rms
		Current : 0.09 mA to 10.04 mA rms
Measurement speed	FAST MED SLOW SLOW2
	0.5 ms 0.9 ms 2.1 ms 3.7 ms
Measurement speed	FAST MED SLOW SLOW2
	0.5 ms 0.9 ms 2.1 ms 3.7 ms
Basic accuracy	IM7580A / IM7581	Z : 0.72% rdg. θ : 0.41°
	IM7583 / IM7585	Z : 0.65% rdg. θ : 0.38°
Number of measured values that can be stored in memory	LCR Mode	32000
	Analyzer Mode	100 sweeps
Interfaces	HANDLER, USB, LAN, GP-IB (optional),RS-232C (optional)
Display	8.4-inch color TFT with touch panel
Dimensions and mass	IM7580A / IM7581	Approx. 215 W×200 H×268 D mm (8.46 W×7.87 H, approx. 6.5 kg (229.3 oz)
	IM7583 / IM7585	Approx. 215 W×200 H×348 D mm (8.46 W×7.87 H×13.7 D in), approx. 8.0 kg (282.3 oz)

테스트 픽스처 스탠드 IM9200 확대경 부속	어댑터(3.5mm-7mm) IM9906 3.5㎜ (male) -7㎜ 변환	교정 키트 IM9905 OPEN/SHORT/LOAD 세트	SMD 테스트 픽스처 IM9201 직결형2단자측정DC~3 GHz 측정가능 시료치수: 0603~3225 (JIS)
GP-IB 인터페이스 Z3000	RS-232C 인터페이스 Z3001	GP-IB 접속 케이블 9151-02 2 m	RS-232C 케이블 9637 PC 연결용, 9pin – 9pin, 크로스, 1.8 m
