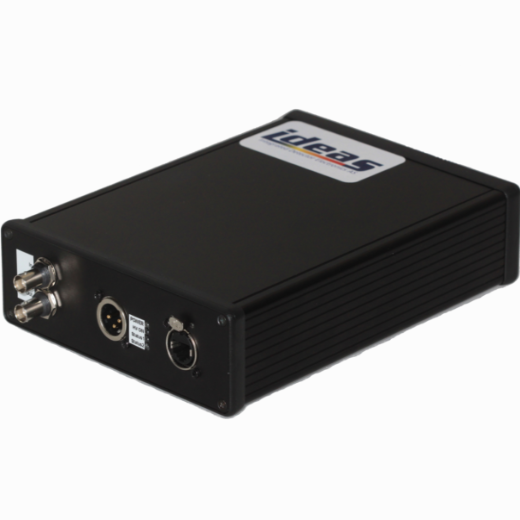

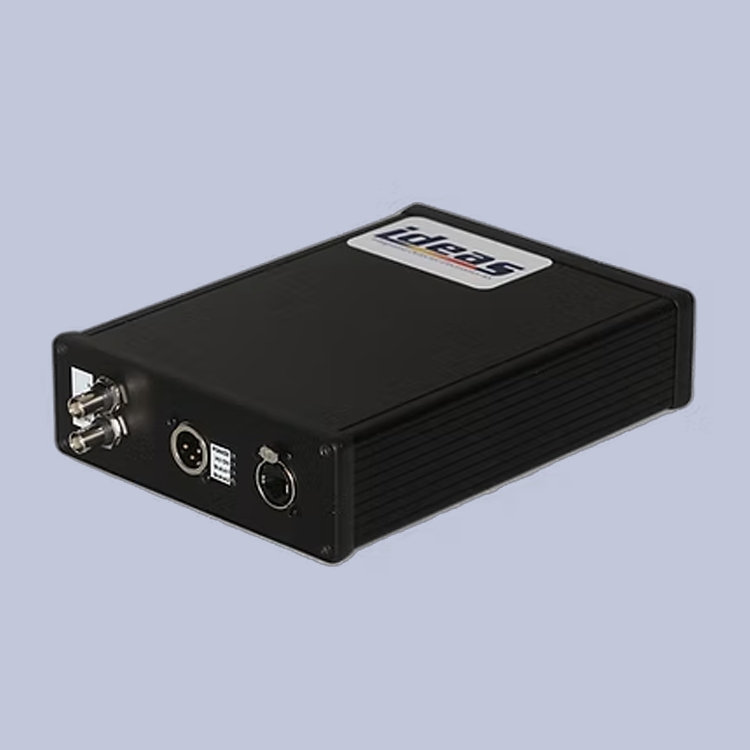

The INX-500 is a current integrating x-ray detector system that allows one to acquire x-ray shadow images from liquidsor solid objects. The radiation sensor is made of CZT arranged in a line pattern. The readout electronics is based on IDEAS radiation sensor readout IC technology.
The INX-500 is designed for applications that require high radiation flux and high readout frame-rate (50000 frames per second). The integration time can be programmed to be as low as 50ns.
The INX-500 hardware is modular, which allows system designers to assemble any length of sensors in line or curved shapes.
Currently two types of sensor are available: 2-mm thick with 0.8-mm pixel pitch, and 5-mm thick with 1.6-mm pixel pitch.
The image data is transferred via standard Ethernet interface using custom TCP/UDB base readout and control protocol. A C-API and/or LabView-API are available.
제품 설명
The INX-500 is a current integrating x-ray detector system that allows one to acquire x-ray shadow images from liquidsor solid objects. The radiation sensor is made of CZT arranged in a line pattern. The readout electronics is based on IDEAS radiation sensor readout IC technology.
The INX-500 is designed for applications that require high radiation flux and high readout frame-rate (50000 frames per second). The integration time can be programmed to be as low as 50ns.
The INX-500 hardware is modular, which allows system designers to assemble any length of sensors in line or curved shapes.
Currently two types of sensor are available: 2-mm thick with 0.8-mm pixel pitch, and 5-mm thick with 1.6-mm pixel pitch.
The image data is transferred via standard Ethernet interface using custom TCP/UDB base readout and control protocol. A C-API and/or LabView-API are available.
| Product ID | Detector Thickness | Pixel Pitch | Pixels per Seg. | Pixel Layout per Seg. | No. of Seg. | Options |
| IDE-INX-500 | 5 mm | 1.6 mm | 1024 | 128×8 | max 8 | C and/or LabVIEW API; auxiliary synch and power equipment. |
| IDE-INX-501 | 2 mm | 800 μm | 256×4 |
| Detectors | CZT, 2-mm or 5-mm thick |
| Application | Industrial X-ray, NDT, Process Flow Tomography, Fluid-Dynamics Analysis |
| Number of pixels | Up to 1024 |
| Scalable | Yes, up to several meters |
| Frame rate | Up to 50 000 samples/s |
| Input charge range | Several 100keV |
| Pixel pitch | 800μm or 1.6 mm |
| Data interface | Ethernet, TCP/UDP |
| Power consumption | 12 W |
| Dimensions | 204.8 mm x 12.8mm for 1.6um pixel pitch |
| Weight | <2kg |
| Data interface | Ethernet, TCP/UDP |
| Dimensions | 204.8 mm x 12.8mm for 1.6um pixel pitch |
| Number of pixels | Up to 1024 |
