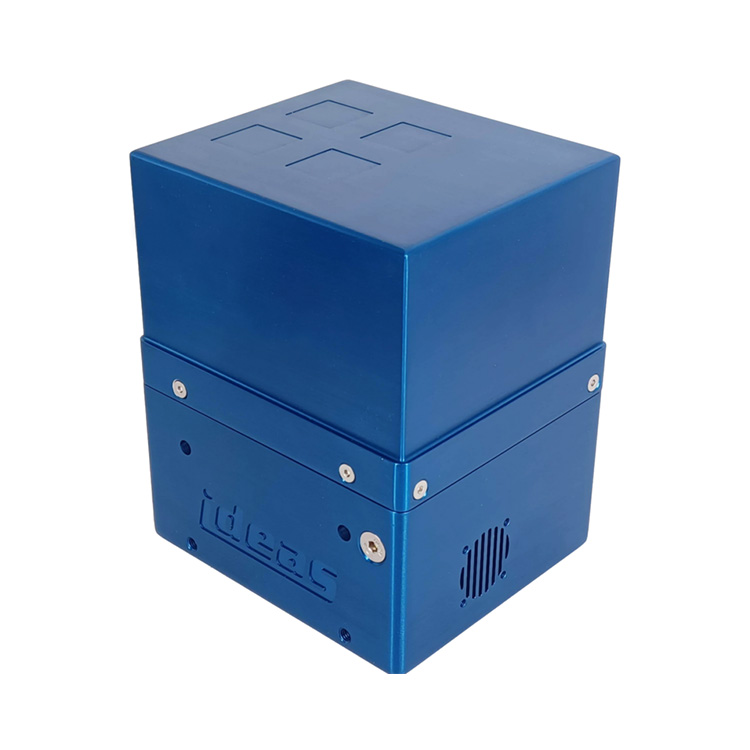

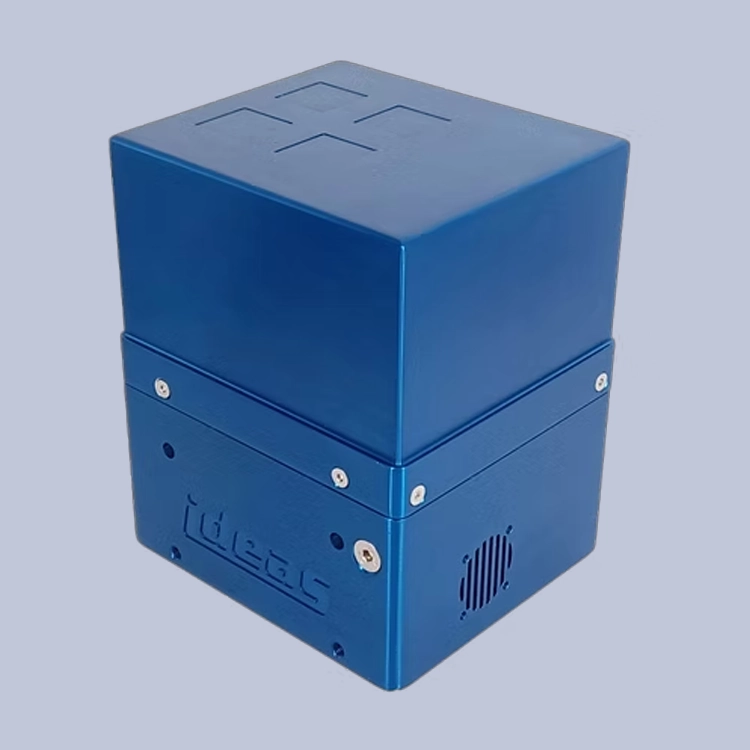

The GDS-100 is a CZT-based gamma-ray spectrometer that employs continuous sampling and pulse shaping in the digital domain to provide waveform data of gamma events.
The system is designed for up to four large CZTs providing a large sensitive area. It has a large dynamic area up 9 MeV and delivers high spectral resolution and depth of interaction.
제품 설명
The GDS-100 is a CZT-based gamma-ray spectrometer that employs continuous sampling and pulse shaping in the digital domain to provide waveform data of gamma events.
The system is designed for up to four large CZTs providing a large sensitive area. It has a large dynamic area up 9 MeV and delivers high spectral resolution and depth of interaction.
The GDS-100 includes a digital core with pre-installed IDEAS firmware, a calibration circuit for charge injection, a high-voltage module and is powered by a single 12 V supply, and controlled via Ethernet.
The system is located within a light-tight enclosure to ensure a high signal-to-noise ratio.
The system is delivered with a rudimentary PC software for control and data acquisition. An API is also included, letting the user design their own data acquisition software.
| Applications | Gamma spectroscopy, isotope identification, Comptron imaging, detector analysis, hot spot locator. |
| Detector type | Cadmium Zinc Telluride (CZT) |
| Detector dimensions | 22 mm x 22 mm x 10 mm |
| Number of detectors | 1-4 |
| Pixels | 11x11 anode array, 1 large cathode |
| Energy range | Four programmable ranges from 20 kev up to 0.7, 3, 7, 9 MeV |
| Power consumption | Ca 5 W |
| Voltage | 12 V |
| Data interface | List mode digital raw data via Ethernet UDP/TCP |
| Count rate | 12 kcps |
| High Voltage Module | Programmable down to -3 kV |
| CZT configuration | Flat or stacked |
| Enclosure Dimensions | 100 mm x 114 mm x 119.2 mm (flat) 100 mm x 140.2 mm (stacked) |
