Product Description |

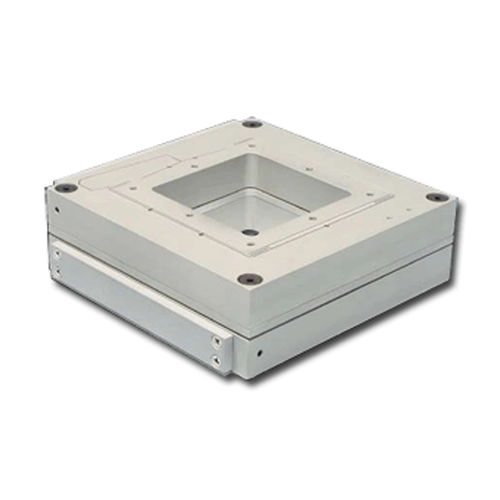

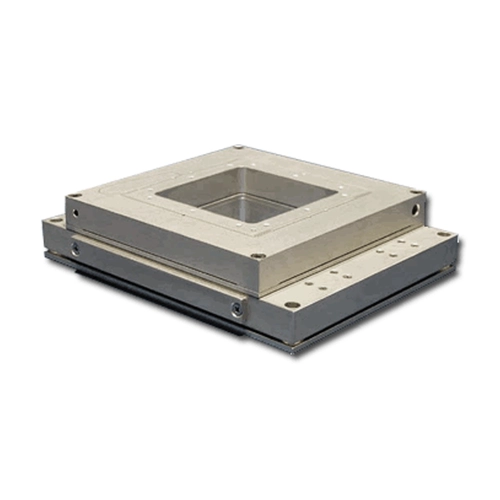

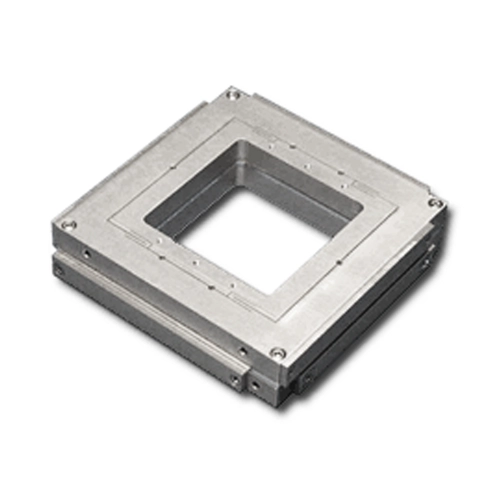

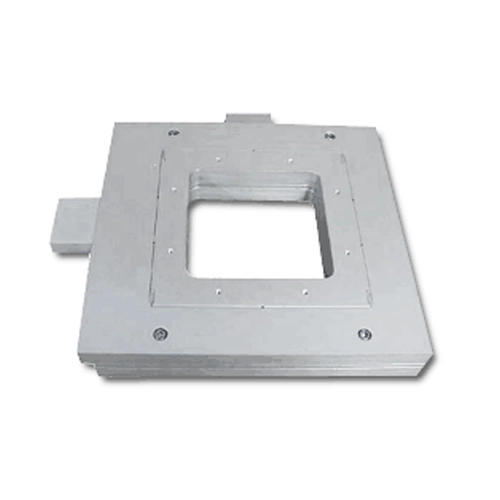

| The Nano-Bio Series are ultra low profile, two axis piezo nanopositioning systems. The low profile design allows the Nano-Bio Series to be easily integrated into existing inverted microscopes, AFMs and other instrumentation where space is limited. The large center aperture allows the Nano-Bio to accommodate the lenses of all major microscope manufacturers. The Nano-Bio Series includes internal position sensors with proprietary PicoQ® technology to provide absolute, repeatable position measurement and picometer accuracy under closed loop feedback control. The Nano-Bio100, Nano-Bio200, and Nano-Bio300 are constructed from aluminum and are ideal for optical microscopy. The invar Nano-Bio2M has increased thermal stability, reduced overall size, and is an easily implemented closed-loop scanner upgrade for instruments using Veeco NanoScope controllers (needs a Nano-Drive® controller with the AR-10 option). See the Nano-LP Series for a low profile, 3-axis piezo nanopositioning system. |
Technical Specifications | |
| Range of motion (Nano-Bio2M) | 50 μm x 50 μm |
| Range of motion (Nano-Bio100) | 100 μm x 100 μm |
| Range of motion (Nano-Bio200) | 200 μm x 200 μm |
| Range of motion (Nano-Bio300) | 300 μm x 300 μm |
| Resolution (50/100/200/300 μm) | 0.1/0.2/0.4/0.6 nm |
| Resonant Frequencies (Nano-Bio100, Nano-Bio200, and Nano-Bio300) | |
| X axis (100/200/300 μm) | 450/400/260 Hz ±20% |
| Y axis (100/200/300 μm) | 350/300/200 Hz ±20% |
| Resonant Frequencies (Nano-Bio2M) | |
| X axis | 500 Hz ±20% |
| Y axis | 400 Hz ±20% |
| Stiffness | 1.0 N/μm |
| θ roll, θ pitch (typical) | ≤1 μrad |
| θ yaw (typical) | ≤3 μrad |
| Recommended max. load (horizontal)* | 0.5 kg |
| Recommended max. load (vertical)* | 0.2 kg |
| Body Material | Al (all models), Invar or Titanium (100 or 200μm only) |
| Controller | Nano-Drive® |
| * Larger load requirements should be discussed with our engineering staff. | |
Additional Information | |
Nano-Bio100, Nano-Bio200, and Nano-Bio300 Drawing Bio-2M Drawing | Nano-Bio Series Catalog Pages |
