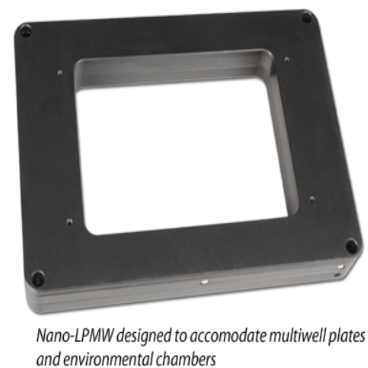

The Nano-LPMW is a unique 3 axis piezo nanopositioning system designed to hold multiwell plates, slides, dishes and environmental chambers. The Nano-LPMW has a low profile and extra-large center aperture with 200 micron range of motion in all three axes. The low height of the Nano- LPMW Series allows it to be easily integrated into existing inverted optical microscopes and is compatible with a lrange of microscope stages. Like the related Nano-LPS Series, the Nano-LPMW is ideal for demanding microscopy applications which require long range travel, high stability, and three axes of motion. The Nano-LPMW is the only 3 axis piezo nanopositioning system which can hold multiwell plates and incubators. Precise and repeatable motion is made possible through closed loop control combined with PicoQ® position sensors. For single axis multiwell plate nanopositioning, see the Nano-ZL Series.
제품 설명
The Nano-LPMW is a unique 3 axis piezo nanopositioning system designed to hold multiwell plates, slides, dishes and environmental chambers. The Nano-LPMW has a low profile and extra-large center aperture with 200 micron range of motion in all three axes. The low height of the Nano- LPMW Series allows it to be easily integrated into existing inverted optical microscopes and is compatible with a lrange of microscope stages. Like the related Nano-LPS Series, the Nano-LPMW is ideal for demanding microscopy applications which require long range travel, high stability, and three axes of motion. The Nano-LPMW is the only 3 axis piezo nanopositioning system which can hold multiwell plates and incubators. Precise and repeatable motion is made possible through closed loop control combined with PicoQ® position sensors. For single axis multiwell plate nanopositioning, see the Nano-ZL Series.
기술 사양
| Range of motion | 200 x 200 x 200 μm |
| Resolution | 0.4 nm |
| Resonant Frequencies | |
| Xaxis | 105 Hz ±20% |
| Yaxis | 90 Hz ±20% |
| Zaxis | 195 Hz ±20% |
| θ roll, θ pitch (typical) | ≤40 μrad |
| θ yaw (typical) | ≤20 μrad |
| Recommended max. load (horizontal)* | 0.5 kg |
| Recommended max. load (vertical)* | 0.2 kg |
| Body Material | Aluminum |
| Controller | Nano-Drive® |
| Accessories | Adapter plate to Ti-S-E/ER Sample holders Incubators |
