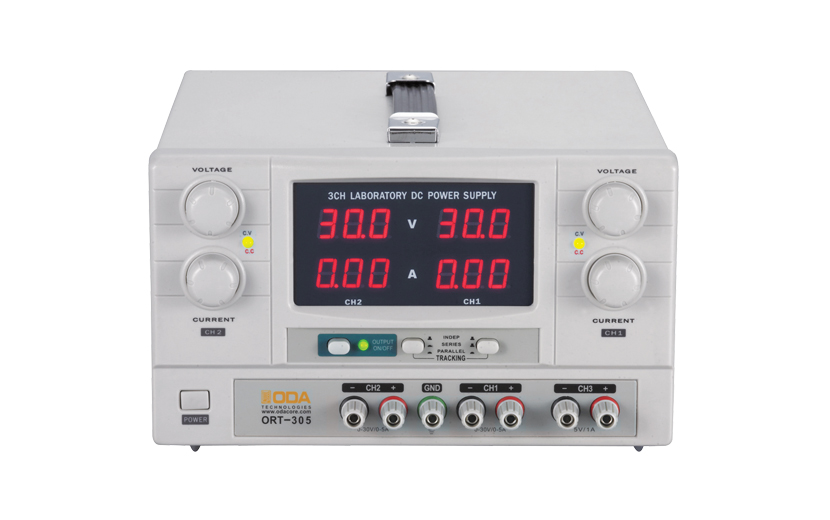

	ORT-303	ORT-305
Output Rating	0~30V, 0~3A, 2ch	0~30V, 0~5A, 2ch
Output Rating	5V/1A Fixed Output	5V/1A Fixed Output
Resolution	100mV / 10mA	100mV / 10mA
Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage	0.4% + 2dgt	0.4% + 2dgt
Current	0.4% + 2dgt	0.4% + 2dgt
Ripple & Noise	≤ 2mVp-p ≤ 2mArms	≤ 2mVp-p ≤ 2mArms
Load Regulation
Voltage	0.1% + 20mV	0.1% + 20mV
Current	0.1% + 5mA	0.1% + 5mA
Line Regulation
Voltage	0.1% + 20mV	0.1% + 20mV
Current	0.1% + 5mA	0.1% + 5mA
Voltage Programming Speed(No load)
Rising time	≤ 100ms	≤ 100ms
Falling time	≤ 1.2s	≤ 1.2s
공통사항	치수 : 130mm(W) x 165mm(H) x 310mm(D) 사용설명서, AC 입력 코드, 출력 케이블 제공
